FT-I04 Femto-Indenter

World's highest resolution nanoindenter

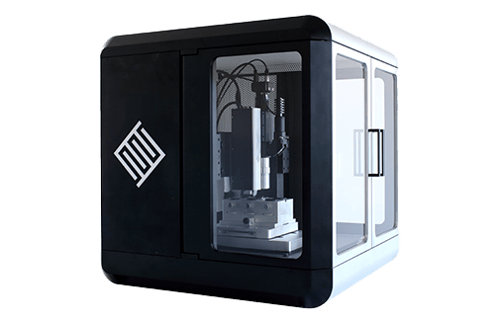

FT-I04 Femto-Indenter, a standalone MEMS-based nanoindenter for material property analysis.


FT-I04 Femto-Indenter, a standalone MEMS-based nanoindenter for material property analysis, with open doors.
FT-I04 Femto-Indenter, a standalone MEMS-based nanoindenter for material property analysis, with doors closed.
FT-I04 Femto-Indenter, a standalone MEMS-based nanoindenter for material property analysis, with open doors, angled view.
Close-up of FT-I04 Femto-Indenter tip engaged with material for nanomechanical testing.
FT-I04 Femto-Indenter positioning its tip above sample holders for precision measurement.
Side view of FT-I04 Femto-Indenter highlighting the tip and sample stage for nanoscale testing.

The FT-I04 Femto-Indenter is a high-resolution nanomechanical testing system capable of accurately quantifying the mechanical and tribological properties of materials at the micro- and nanoscale.

As the world’s first MEMS-based nanoindenter, the FT-I04 uses FemtoTools patented Micro-Electro-Mechanical System (MEMS) technology. Leveraging over two decades of innovations, this nanoindenter provides unmatched resolution, repeatability, and dynamic stability.

The FT-I04 Femto-Indenter is optimized for the mechanical testing of metals, ceramics, thin films and coatings, as well as more compliant microstructures such as metamaterials.

Typical applications include the quantification of hardness and elastic modulus, mechanical property mapping, and additional modules for scratch, SPM imaging, and high-temperature testing.

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores-

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat.

Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore.

Key Features

  • 01 Unmatched Dynamic Range
  • 02 Highest Resolution
  • 03 True Displacement Control

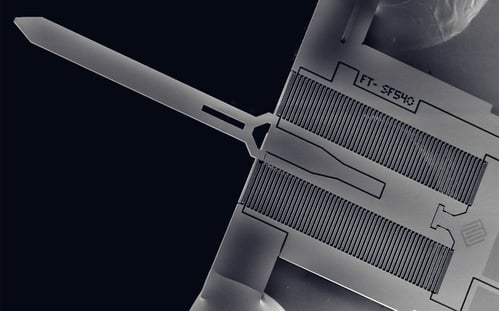

Close-up of a MEMS-based force sensor with high dynamic range and low noise floor.


Micro-Electro-Mechanical System (MEMS)-based force sensors have an unmatched dynamic range of up to 100 kHz, thanks to their exceptionally small mobile mass and high stiffness. Moreover, the fine fabrication tolerances of MEMS achieve the lowest possible noise floor, reaching down to 500 pN.


up to 100 kHz
Resonance frequency

down to 500 pN
Force noise floor

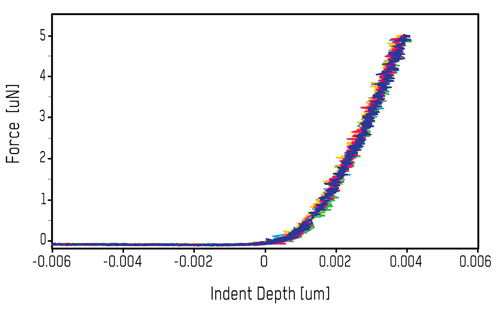

Graph displaying high-resolution nanoindentation data with minimal noise, showing precise force versus depth measurements on quartz glass.


A key quality metric of a nanoindenter is its ability to accurately measure indentation depth. This is limited by the noise floor (resolution) of the displacement sensor. With an unmatched noise floor of <50 pm, the FT-I04 Femto-Indenter achieves excellent results even at the most shallow depths, as shown here with repeatable indentation curves to only 5 nm on quartz glass.

< 50 pm
Displacement noise floor

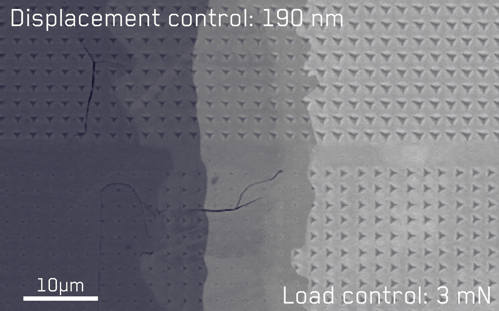

Microscopic view showing the clear advantage of displacement control in nanoindentation mapping.


Displacement-controlled nanoindentation is essential for measuring and comparing mechanical properties at consistent indentation depths, ensuring the probing of equivalent material volumes.


Native displacement control
Control mode


Testing modes

SEM image of Berkovich indentations revealing mechanical properties of a material via nanoindentation.
Read More


Nanoindentation assesses the local mechanical behavior of a material by pressing a sharp tip into its surface and measuring the force needed to create an indent. This technique measures local mechanical properties (including hardness, elastic modulus, strain rate sensitivity, and others) directly from the material's response.


Read More
Nanoindentation mapping of nodular cast iron structure, showing the usage of a hardness map obtained by nanoindentation a microscope.
Read More

Mechanical Microscopy

Nanoindentation mapping, or mechanical microscopy, employs a nanoindenter in a microscope-like manner. It enables the mapping of mechanical properties of intricate microstructures in minutes, thanks to the integration of rapid indentation speeds and precise spatial resolution.


Read More
Correlative mechanical microscopy images overlaying mechanical and elemental data.
Read More

Correlative Mechanical Microscopy

Correlative mechanical microscopy merges nanoindentation with additional microscopy methods. This integration of various data layers enables precise phase identification by including elemental or crystallographic analysis in the mechanical measurement.


Read More
Example of strain rate dependent testing by strain rate jump analysis (SRJ).
Read More

Strain-Rate Control

Time, like temperature, is a key parameter for materials deformation. Speed determines the active deformation mechanism. Strain-rate control during testing achieves the most consistent results and allows exploring the material's response from creep to impact, even within a single indent.


Read More
Close-up view of nanoindentation test with a glowing indenter tip during high-temperature testing.
Read More

High-Temperature Testing

Temperature changes the mechanical behavior of materials. It is crucial for assessing operando mechanical properties, under conditions close to their target application. Using precision MEMS heating to achieve rapid temperature matching and thermal control, stable measurements can be performed even at high temperatures.


Read More
Scratch test topography providing quantitative data on material hardness and wear resistance.
Read More

Scratch Testing

Scratch is a critical method for assessing materials’ adhesion, hardness, and resistance to wear - especially for coatings. It provides quantitative data on material durability and performance by scribing a hard tip across the surface and measuring the required force and the resulting topography.


Read More
Close-up of a spherical ruby indenter tip used for soft material characterization.
Read More

Soft Materials Testing

Polymers, metamaterials, or bio-inspired materials are critical for modern technologies. Analysis of these soft materials requires systems capable of both large displacements and high force resolution.


Read More

Application notes

Mechanical Microscopy of Surface Treatments

Correlated Mechanical Microscopy of Compositional Gradients (with EDX)

Nanoindentation of Thin Films: Advantages of CSM

Influence of Oscillation Amplitudes on Nanoindentation

Correlated Mechanical Microscopy with EBSD and EDX for Complex Microstructures


  • 01 High-Temperature Module
  • 02 Scratch Testing Module
  • 03 Microforce Sensing Probes
  • 04 Two-Axis Microforce Probes
  • 05 High-Temperature Probes

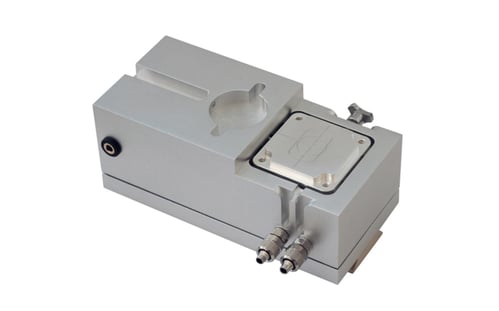

High-temperature module for nanoindentation tests up to 400°C with inert gas atmosphere.

High-Temperature Module

The high-temperature module enables mechanical testing, such as nanoindentation, at controlled temperatures up to 400°C in an inert gas atmosphere. In combination with our microforce sensing probes featuring tip heating, controlled isotherm testing is possible.

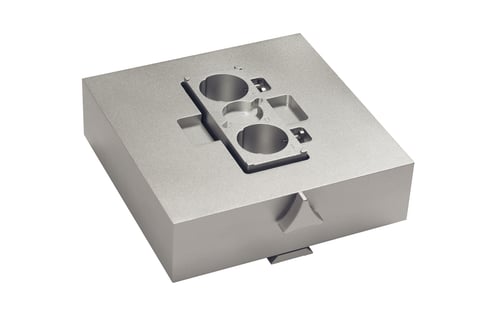

Sample stage with piezoscanner and 2-axis microforce sensing probe for scratch material testing.

Scratch Testing Module

Combining an exchangeable sample stage with a piezoscanner and a FemtoTools 2-Axis Microforce Sensing Probe enables advanced techniques, such as nano-scratch and nano-wear testing, as well as SPM imaging, by facilitating the in-plane movement of the sample while simultaneously applying a normal force.


FT-S Microforce Sensing Probe, versatile in measuring forces with various tip options.

Microforce Sensing Probes

The FT-S Microforce Sensing Probes are sensors capable of measuring forces from sub-nanonewton to 2 newtons along the sensor’s probe axis. They are available with a wide variety of tip materials and geometries, including diamond Berkovich, cube corner, flat punch, wedge, conical, and more.

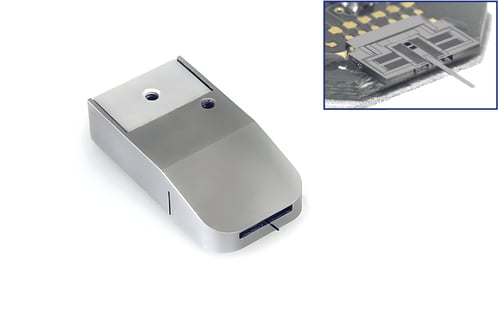

FT-S Microforce Sensing Probe, versatile in measuring forces with 2-axis movement.

Two-Axis Microforce Sensing Probes

The  FT-S Two-Axis Microforce Sensing Probes are Micro-Electro Mechanical Systems (MEMS) based multi-axis microforce sensors capable of simultaneous measuring forces in the two in-plane directions. The primary application for these sensors is nano-scratch, nano-tribology and nano-wear testing.

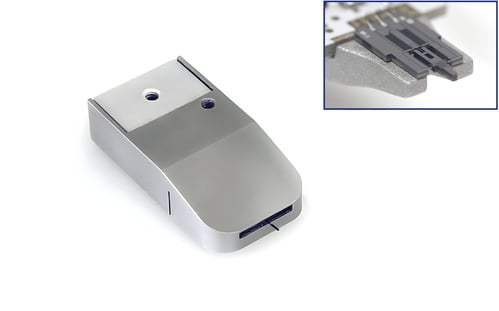

FT-S Microforce Sensing Probe, versatile in measuring forces with high temperature capabilities.

High-Temperature Microforce Sensing Probes

The  FT-S High-Temperature Microforce Sensing Probes are Micro-Electro Mechanical Systems (MEMS) based microforce sensors capable of measuring forces from 200mN to 2 µN. Furthermore, with the monolithically integrated tip heater, the temperature of the nanoindenter tip can be accurately matched to the temperature of the sample, enabling isothermal testing conditions.
